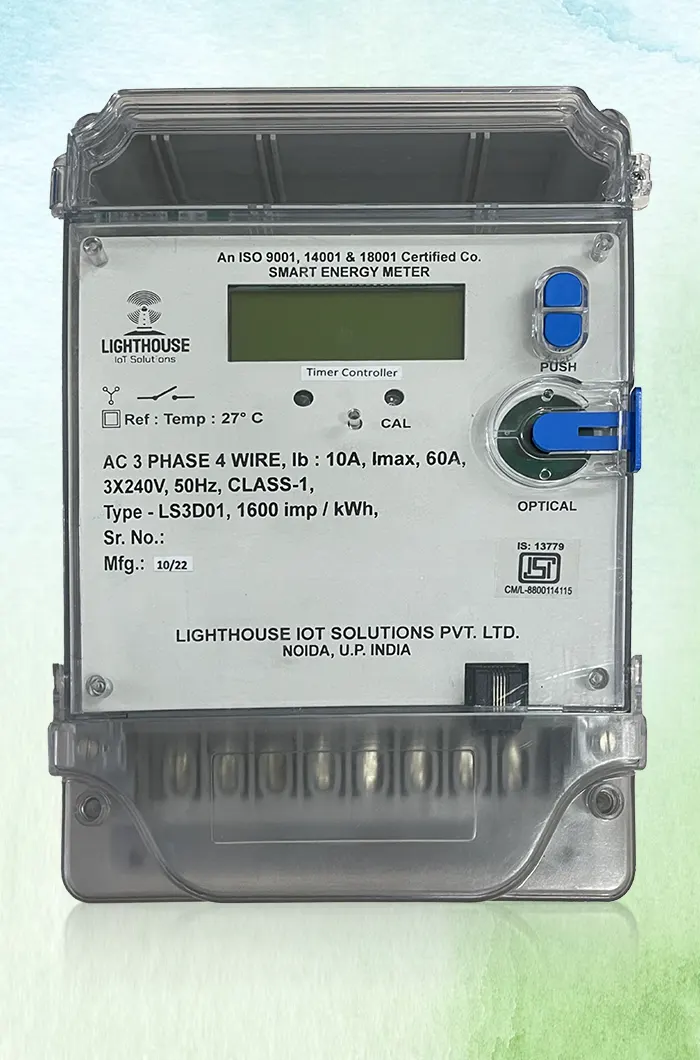

3 Phase, Static Energy Meter

3 Phase, Static Energy Meter

Salient Features
  • Compliance with IS: 13779 & CBIP Report No. 304 with latest amendments
  • State-of-the-art design with class 1.0 accuracy
  • Liquid Crystal Display with backlit
  • 8 digits including 2 decimal digit (999999.99)
  • Comprehensive tamper detection and tamper proofing measures
  • LED/LCD indication for calibration, phase indication, earth load tamper and reverse tamper
  • D i s p l a y / R e c o r d cumulative active energy (kWh)
  • TOD, MD, Load profile, PF indication  Optical communication port
  • A c c u r a t e e n e r g y registration in case of all tampers
  • High resolution energy display mode for dial test
  • Compact, sleek and packed in dust, moisture and shock proof (IP51) polycarbonate enclosure
3 Phase, Static Energy Meter

Technical Specification

Confirms to IS 13779, IEC 62052/53, CBIP Report No. 304 with latest amendments
Accuracy Class Class 1.0
Reference Voltage 3X240V AC (-40% to +20%)
Current Rating lb (lm) 10(60)A
Frequency Range 50Hz ± 5%
Power Factor Range 0(lag)-UPF-0(lead)
Starting Current 0.2% Ib
Meter Constant 1600 Pulses/kWh
Power Consumption As per IS:13779:2020
Display LCD- 6+2

Display/Record Parameters

Auto Scroll Mode Push Button Mode

LCD check, Cumulative active energy in kWh, maximum demand in KW, instantaneous load in KW, real date & time, instantaneous voltage, instantaneous current, power factor per phase, frequency, meter serial no.

Note: Display parameter can be customized as per requirement

Real date & time, Instantaneous voltage, Instantaneous current Instantaneous power factor, Instantaneous load (kW) Supply frequency, MD with date & time, Meter serial no.

Note: Display parameter can be customized as per requirement
Tamper Communication

Current reversal, DC/AC magnetic influence, Cover open

Optical communication as per IEC 62056 - 2 1 Optically isolated RS 232 / RS 485 port for data downloading, IRDA communication (optional) Downloaded data can be used for on the spot billing.
