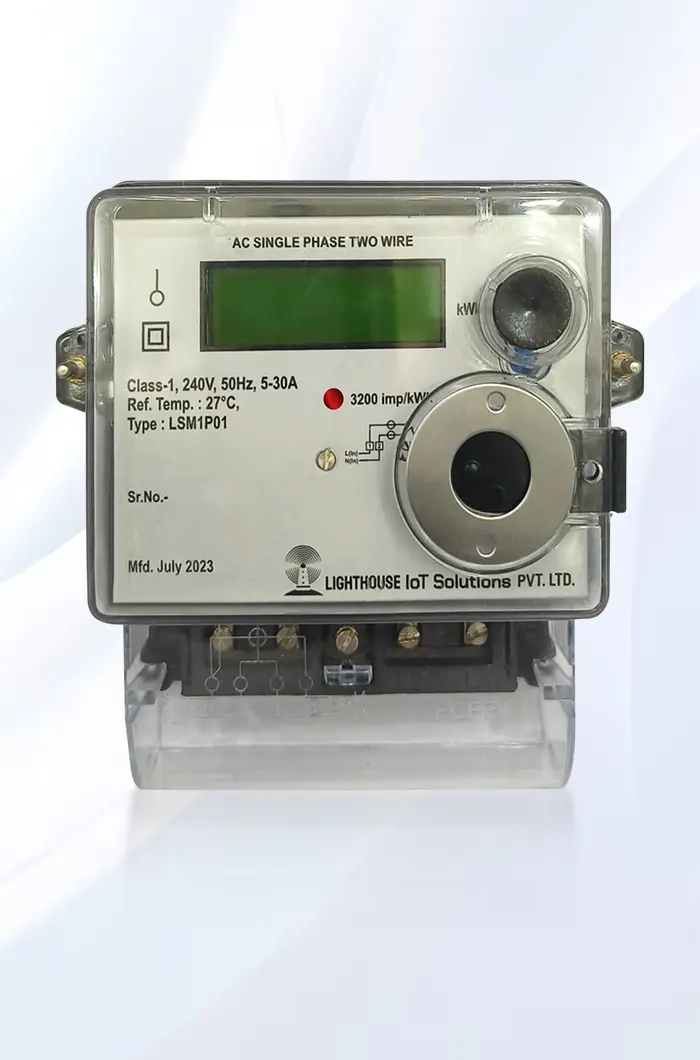

1 Phase Static Energy Meter

1 Phase Static Energy Meter

Salient Features
  • Compliance with IS : 13779 & CBIP Report No. 304 with latest amendments
  • State-of-the-art design with class 1.0 accuracy
  • Liquid Crystal Display with Backlit
  • 7 digits including 1 decimal digit (9999999.9)
  • Comprehensive tamper detection and tamper proofing measures
  • L E D / L C D indication for calibration, phase indication, earth load
  • Tamper and reverse tamper
  • Display/Record cumulative active energy (kWh)
  • TOD, MD, Load profile, PF indication
  • F o r w a r d e n e r g y registration in case of all tampers
  • Compact, sleek and packed in dust, moisture and shock proof (IP51) polycarbonate enclosure
1 Phase Static Energy Meter

Technical Specification

Confirms to IS 13779, IEC 62052/53, CBIP Report No. 304 with latest amendments
Accuracy Class Class 1.0
Reference Voltage 240V AC (-40% to +20%)
Current Rating lb (lm) 5(30)A, 10(60)A
Frequency Range 50Hz ± 5%
Power Factor Range 0(lag)-UPF-0(lead)
Starting Current 0.2% Ib
Meter Constant 3200 Pulses/kWh
Power Consumption As per IS:13779:2020
Display LCD- 7+1

Display/Record Parameters

Auto Scroll Mode Push Button Mode

Cumulative active energy in kWh for Maximum demand for current month in kW with date & time, Real date & time

Note: Display parameter can be customized as per requirement

LCD check, Meter serial no., History of cumulative active energy, (kWh) & MD (kW) with date & time for last six months for grid supply, Cumulative active energy in kWh, maximum demand in KW with date & time, history for last six months in kWh, history of maximum demand in KW with date & time for last six months

Note: Display parameter can be customized as per requirement
Tamper Communication

Current reversal, DC/AC magnetic influence, Neutral missing, Cover open, Immune and log the tamper events for abnormal

Optical communication as per IEC 62056-21, Optically isolated RS232/RS485 port for data downloading, IRDA communication (optional), Downloaded data can be used for on the spot billing
