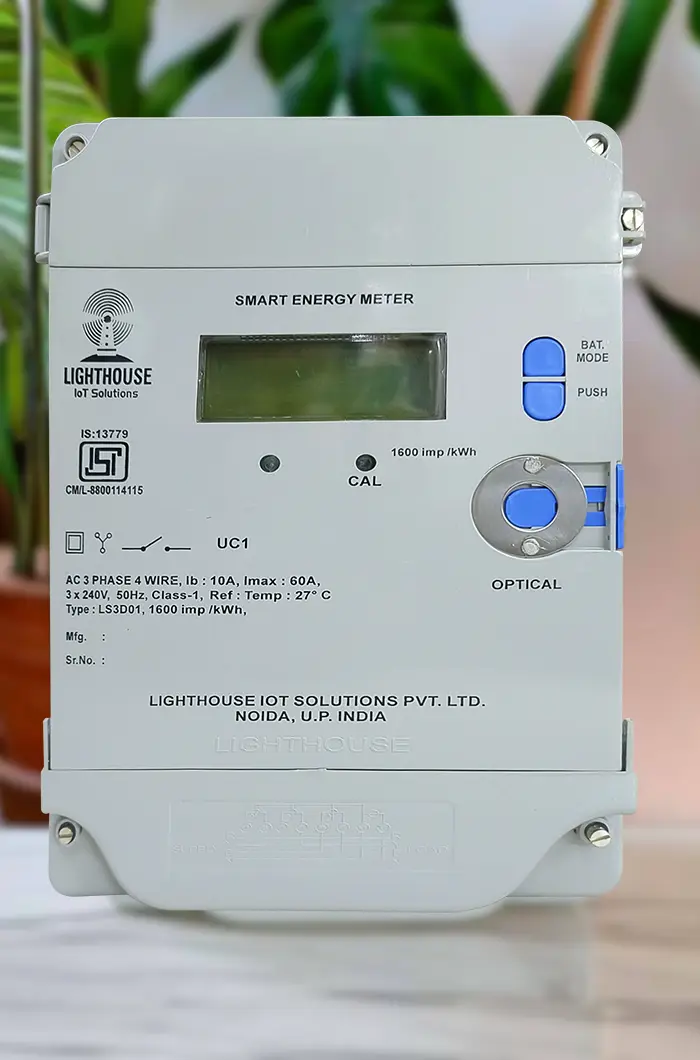

3 Phase Dual Source Smart Energy Meter

3 Phase Dual Source Smart Energy Meter

Salient Features
  • Compliance with IS: 16444 & CBIP Report No. 304 with latest amendments.
  • State-of-the-art design with class 1.0 accuracy
  • Liquid Crystal Display with Backlit
  • 8 digits including 2 decimal digit (999999.99)
  • Measure the power consumption on two sources continuously.
  • DG set & Power grid)
  • Comprehensive tamper detection and tamper proofing measures  L E D / L C D indication for calibration, phase indication, earth load tamper and reverse tamper
  • Display/Record cumulative active energy (kWh)  TOD, MD, Load profile, PF indication
  • Forward energy registration in case of all tampers
  • Inbuilt relays for auto cut-off up to Max. Load.
  • Compact, sleek and packed in dust, moisture and shock proof (IP51) polycarbonate enclosure.
  • Option of plug & Play RF/GPRS communication module.
  • Connect/Disconnect Load Relay
3 Phase Dual Source Smart Energy Meter

Technical Specification

Confirms to IS 13779, IS 16444, IEC 62052/53, CBIP Report No. 304 with latest amendments
Accuracy Class Class 1.0
Reference Voltage 3X240V AC (-40% to +20%)
Current Rating lb (lm) 10(60)A
Frequency Range 50Hz ± 5%
Power Factor Range 0(lag)-UPF-0(lead)
Starting Current 0.2% Ib
Meter Constant 1600 Pulses/kWh
Power Consumption As per IS: 13779:2020
Display LCD- 6+2

Display/Record Parameters

Auto Scroll Mode Push Button Mode
Cumulative active energy in kWh for grid supply, Maximum demand of current month in kW with date & time for grid supply, Real date & time, Cumulative active energy in kWh for DG supply, MD for current month in kW with date & time for DG supply
Note: Display parameter can be customized as per requirement

LCD check, Meter serial no., History of cumulative active energy, (kWh) & MD (kW) with date & time for last six months for grid supply, History of cumulative active energy (kWh) & MD (kW) with date & time for last six months for DG supply
Note: Display parameter can be customized as per requirement

Tamper Communication

Current reversal, DC/AC magnetic influence, Cover open

Optical communication as per IEC 62056-21, Optically isolated RS232/RS485 port for data downloading, GSM/ GPRS/RF communication I R D A communication (optional). Downloaded data can be used for on-the-spot billing
